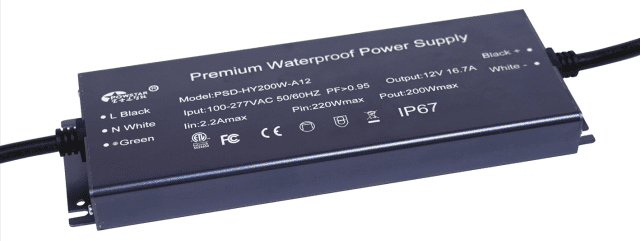

Ultra thin non-dimming waterproof 200W constant voltage power supply 12/24/36/48Vdc

Description

LED Ultra-Thin Power Supplies (Long slim constant voltage LED Driver)

■  Universal AC input/full range(100-277V/120-347V)

■  Built in active PFC function

■  Efficiency up to 93%, super thin and small size

■  Protections:short circuit/over load/over voltage/over temperature

■  IP67 design for indoor or outdoor installation

■  It can be used in dry,wet and rainy environment

■  Cooling by free air, high reliability

■  Up to 50000-hours life time

■  Suitable for internal lights application for ClassI & ClassII & ClassIII

■  Widely used in LED lighting and IT equipment

■  Compliance to worldwide safety regulation for led lighting.



Specification

Model		PSD-HC200W-A12	PSD-HC200W-A24	PSD-HC200W-A36		PSD-HC200W-A48
Output	Output voltage	12VDC	24VDC	36VDC		48VDC
	Output voltage range	12VDC±0.3VDC	24VDC±0. 6VDC	36VDC±0.9VDC		48VDC±1. 2VDC
	Output сurrent	Max 16.6A	Max 8.3A	Max 5.6A		Max 4.15A
	Output power	Max200W
	Output power range	0~ 200W
	Ripple & Noise	≤250mV	≤250mV	≤250mV		≤250mV
	Linear Regulation	±1%
	Load Regulation	±1%
	Start-up Time (Typ)	600ms/230VAC    700ms/175VAC
	Rise Time(Typ)	50ms/230VAC    50ms/175VAC
	Hold Up Time(Typ)	14ms/230VAC    13ms/175VAC
Input	Input voltage	100 – 277Vac/120-347VAC
	Frequency	50Hz/60Hz
	Input сurrent	2A
	Power factor	PF>0 . 96/230Vac, at full load;     PF>0 . 98/175Vac, at full load;
	No-load power consumption	＜0.5W
	THD	≤12% at 230Vac,at full load;      ≤10% at 175Vac,at full load
	Efficiency (typ. )	93%	93. 5%	94%		94%
	In rush current(typ.)	65A/ 230VAC
	Control surge capability	L, N:2KV    L, N- PE:4KV
	Leakage сurrent	Max. 0. 5mA
	Working temperature	ta: -30°C ~ 50°C   t c: 80°C
	Working humidity	20 ~ 99%RH, condensing(Waterproof)
	Storage temp., humidity	-40°C ~ 80°C, 10~ 95%RH
	Vibration	10~ 500Hz, 2G 12min ./1cycle, period for 72min . each along X, Y, Z axes .
Protection	Overtemperature	Protection type: Turnoff the output voltage, after the temperature drops, re-energize to restore.
	Over voltage protection	Output voltage ≥14- 18V, turn off the output, after the abnormality is eliminated, re-energize to recover.			Output voltage ≥29-35V, turnoff the output, after the abnormality is eliminated, re-energize to recover
	Over load protection	Shutdown the output when current load ≥110%~ 150%, auto recovers .
	Short circuit protection	Protection type: It can be automatically restored after the fault is eliminated.
Safety	Withstand voltage	I/P-O/P: 3750Vac
	Isolation resistance	I/P-O/P: 100MΩ/500VDC/25。C/70%RH
	Safety standards	IEC/EN61347;IEC/EN60950;IP67
	EMC emission	EN55015:2013;FCC Part 15B;EN61547:2009;EN61000 -3 – 2:2014;EN61000 -3 -3:2013
	EMC immunity	EN61000 -4 – 2,3,4, 5, 6,8, 11  EN61547
Reliability and  Quality Control	Impact aging	100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
	Component de rating	Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
NOTE	1. All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature . 2. Ripple and noise test method : connect 0 . 1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3. Ensure that the power supply is used under the rated parameters and environment

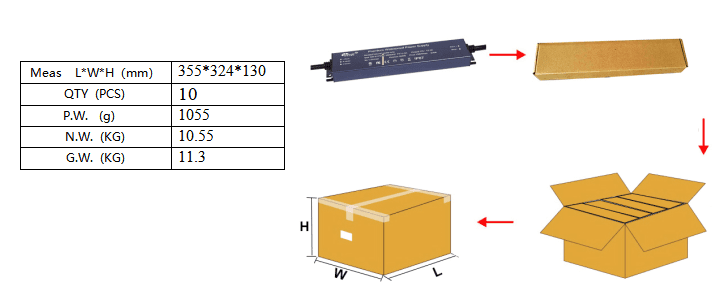

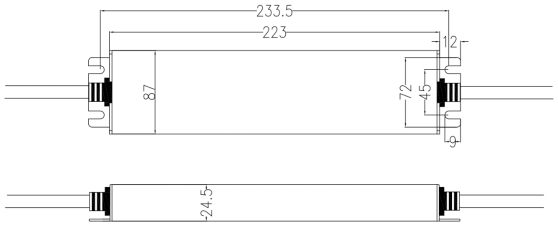

Model list

Model	Input voltage	Output voltage	Output Current	Rated Power	Dimension (MM)
PSD-HC60-A12	100-277Vac/ 200-264Vac	12V	5A	60W	215*48*23
PSD-HC60-A24	100-277Vac/ 200-264Vac	24V	2.5A	60W	215*48*23
PSD-HC100-A12	100-277Vac/ 200-264Vac	12V	8.3A	100W	215*48*23
PSD-HC100-A24	100-277Vac/ 200-264Vac	24V	4.16A	100W	215*48*23
PSD-HC150-A12	100-277Vac/ 200-264Vac	12V	12.5A	150W	248*48*23
PSD-HC150-A24	100-277Vac/ 200-264Vac	24V	6.25A	150W	248*48*23
PSD-HC200-A12	100-277Vac/ 200-264Vac	12V	16.7A	200W	248*87*24.5
PSD-HC200-A24	100-277Vac/ 200-264Vac	24V	8.3A	200W	248*87*24.5
PSD-HC300-A12	100-277Vac/ 200-264Vac	12V	25A	300W	288*87*24.5
PSD-HC300-A24	100-277Vac/ 200-264Vac	24V	12.5A	300W	288*87*24.5
