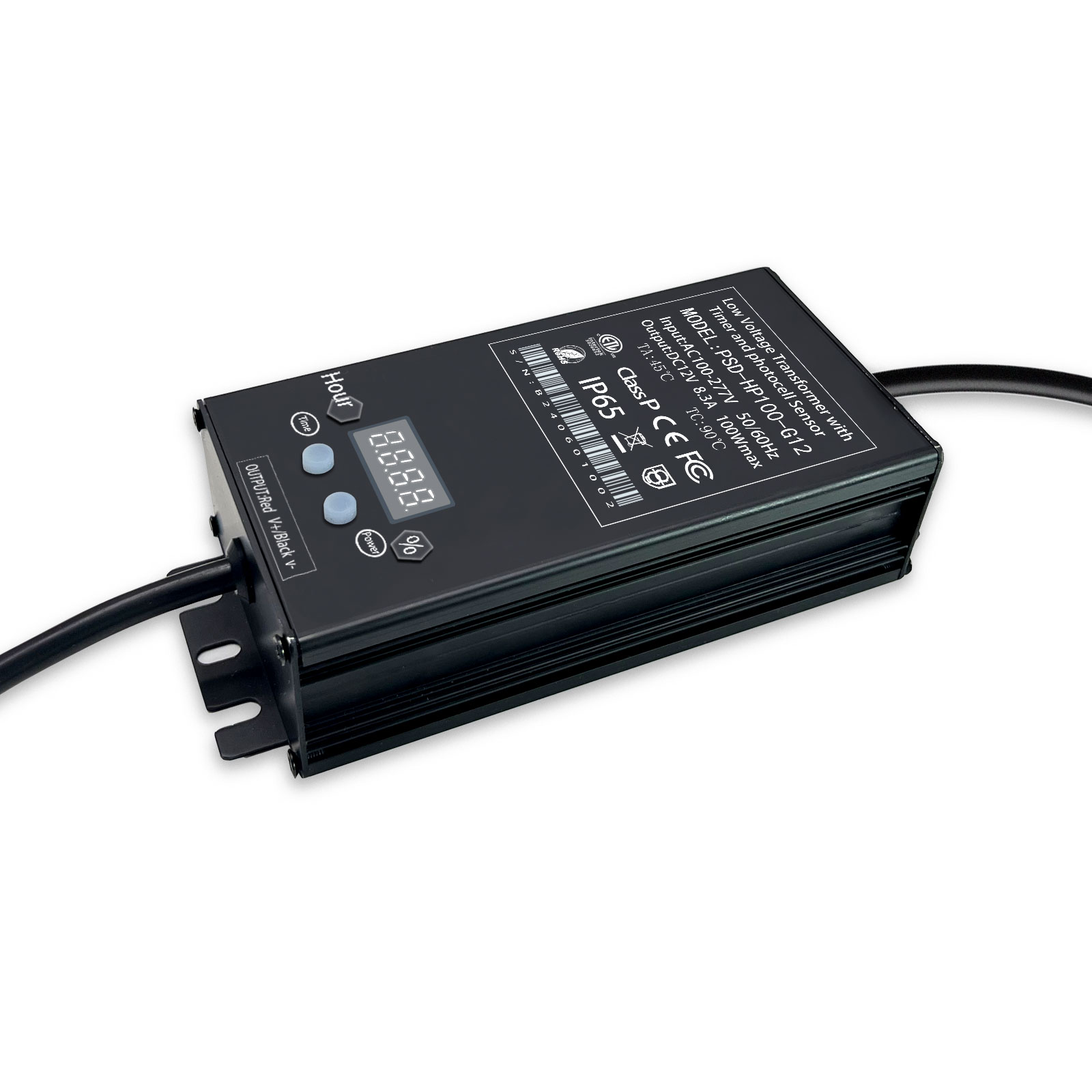

Time control waterproof IP65 constant voltage LED Driver 100W

Description

Time control constant voltage power supply 100W with light sense optional



Features

■  Universal AC input/full range(100-277V)

■  Time control and  Photosensitive control, saving 50% energy

■  Efficiency up to 91%,

■  Protections:short circuit/over load/over voltage/over temperature

■  IP65 design for indoor or outdoor installation

■  It can be used in dry,wet and rainy environment

■  The lights turn off during the day and turn on at night standby power:0.2-0.4W

■  Countdown function, custom time setting

■  Three in one dimming function, (compatible with 0-10V, resistor, PWM)

■  Up to 50000-hours life time

■  Compliance to worldwide safety regulation for led lightings.







Power	Product Model	Input Voltage (AC)	Output Voltage (DC)	Output Current	Efficiency	PF	Size (mm)	IP Rating	Warranty	Certificate
60W	PSD-HP060-G12	100-277V	12V	5A	87%	0.5	148*65*36	IP65	5 Years	ETL FCC CE
	PSD-HP060-G24	100-277V	24V	2.5A	88%	0.5	148*65*36	IP65	5 Years	ETL FCC CE
100W	PSD-HP100-G12	100-277V	12V	8.3A	89%	0.5	148*65*36	IP65	5 Years	ETL FCC CE
	PSD-HP100-G24	100-277V	24V	4.15A	91%	0.5	148*65*36	IP65	5 Years	ETL FCC CE
150W	PSD-HP150-G12	100-277V	12V	12.5A	89%	0.95	148*65*36	IP65	5 Years	ETL FCC CE
	PSD-HP150-G24	100-277V	24V	6.25A	90%	0.95	148*65*36	IP65	5 Years	ETL FCC CE
200W	PSD-HP200-G12	100-277V	12V	16.6A	92%	0.95	238*65*36	IP65	5 Years	ETL FCC CE
	PSD-HP200-G24	100-277V	24V	8.3A	92%	0.95	238*65*36	IP65	5 Years	ETL FCC CE
300W	PSD-HP300-G12	100-277V	12V	25A	92%	0.95	238*65*36	IP65	5 Years	ETL FCC CE
	PSD-HP300-G24	100-277V	24V	12.5A	92%	0.95	238*65*36	IP65	5 Years	ETL FCC CE
200W	PSD-HP200-G12	180-240V	12V	16.6A	92%	0.5	218*65*36	IP65	5 Years	CE
	PSD-HP200-G24	180-240V	24V	8.3A	92%	0.5	218*65*36	IP65	5 Years	CE
300W	PSD-HP300-G12	180-240V	12V	25A	92%	0.5	218*65*36	IP65	5 Years	CE
	PSD-HP300-G24	180-240V	24V	12.5A	92%	0.5	218*65*36	IP65	5 Years	CE

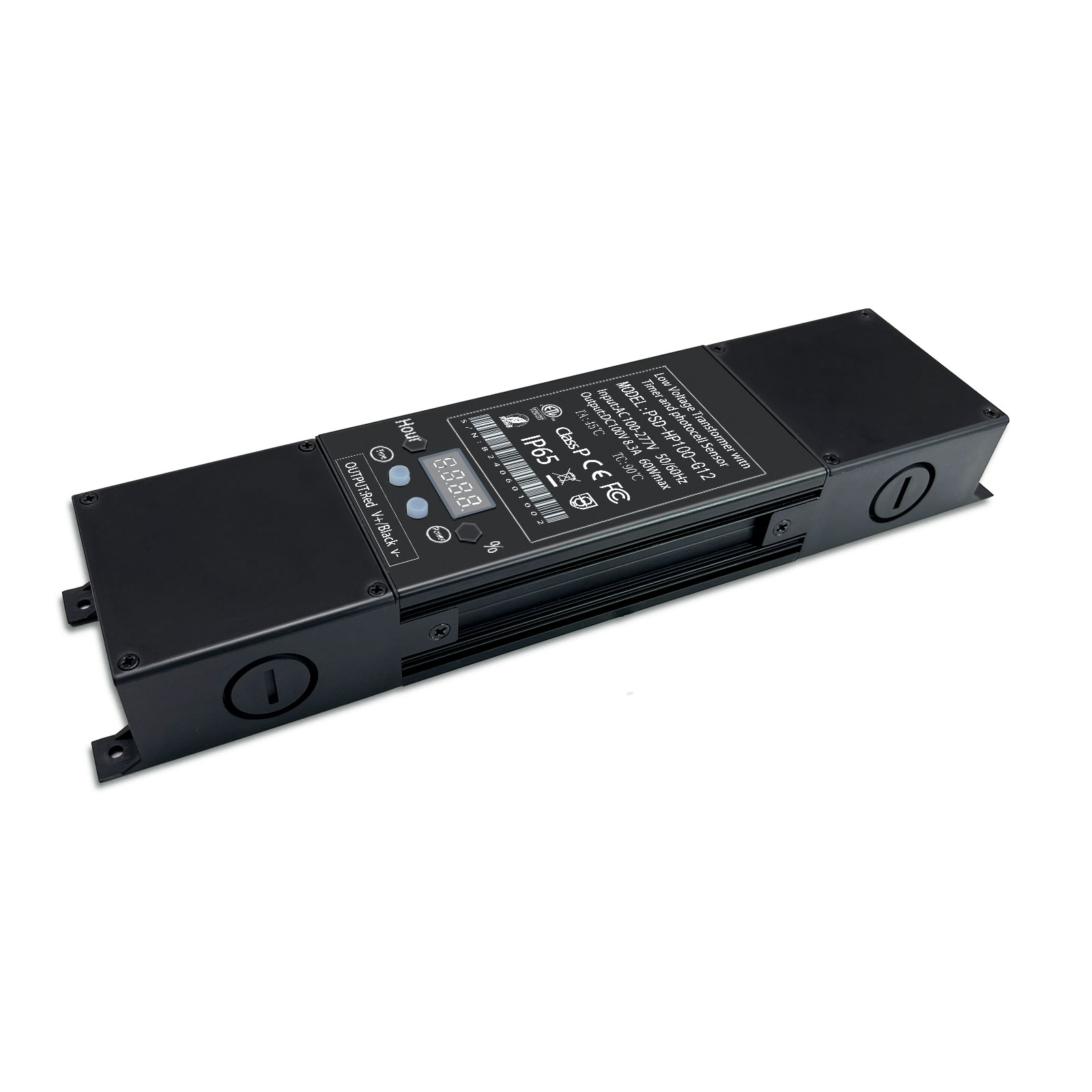

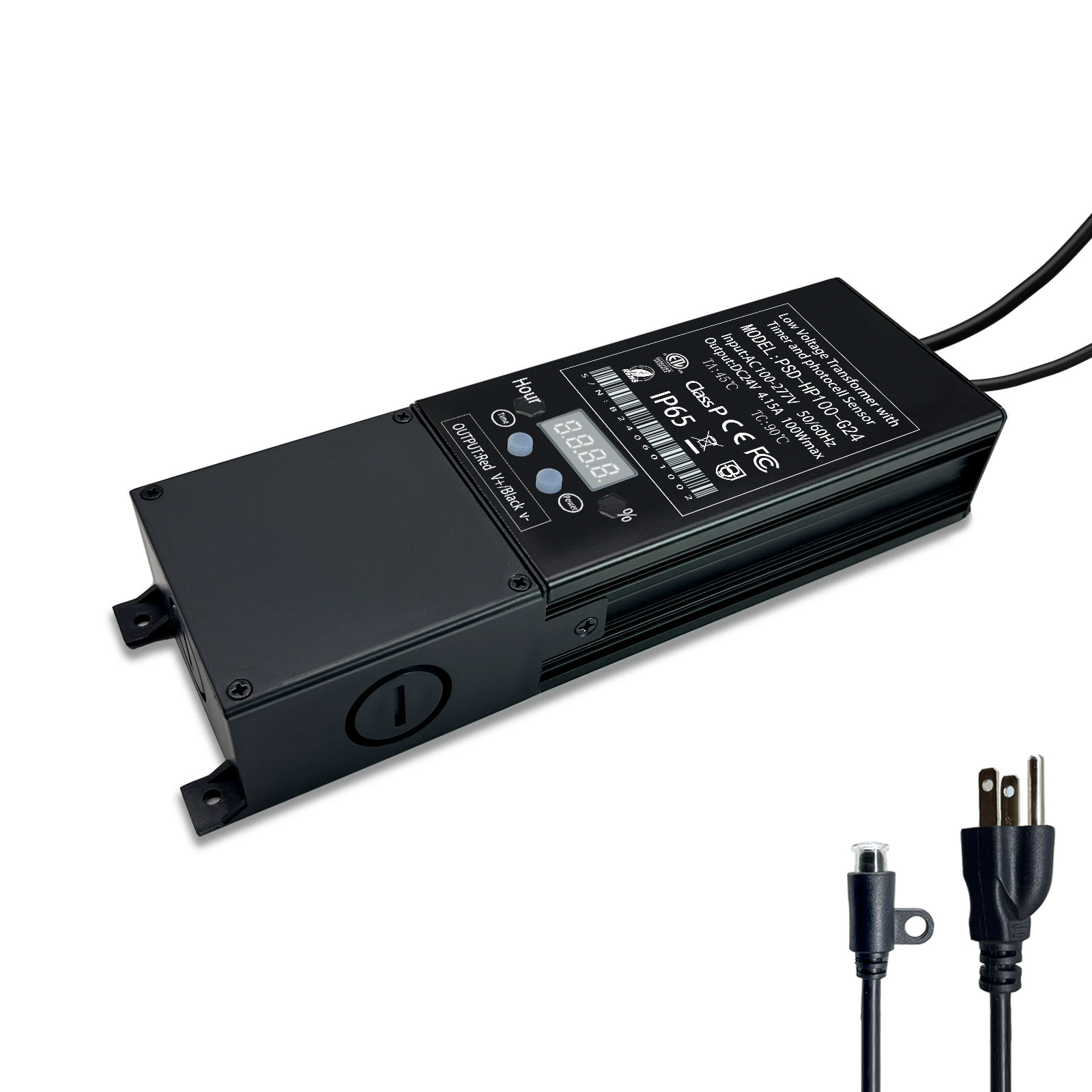

Note: Adding one junction box increases the power supply length by 62mm; adding two junction boxes increases the power supply length by 126mm.

Instruction;

Place the photocell sensor in a position under sunlight, for dusk to dawn control.

Avoid position the photocell under any strong lighting at night.

For cases using more than one transformer to control a group of lights, in order to have them sync, recommend to tie the photocells together and place in same position.

Button description:

Timer button

Press the timer button to set from 1 to 9 hours countdown.

Power button

Press the power button to set the output power after timer ends,

0 (indicating that the light is off),

30 (indicating 30% brightness),

60 (indicating 60% brightness),

100 (100% brightness) is useless as it changes nothing.

For example: Press the time button to the number 1 and the power button to 0, which means that the light will turn off after 1 hour of timing.
