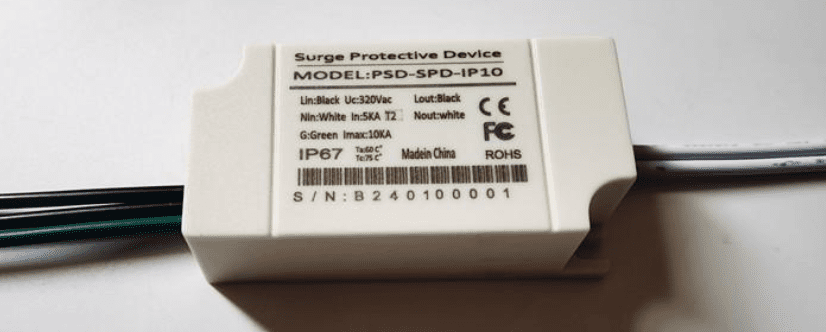

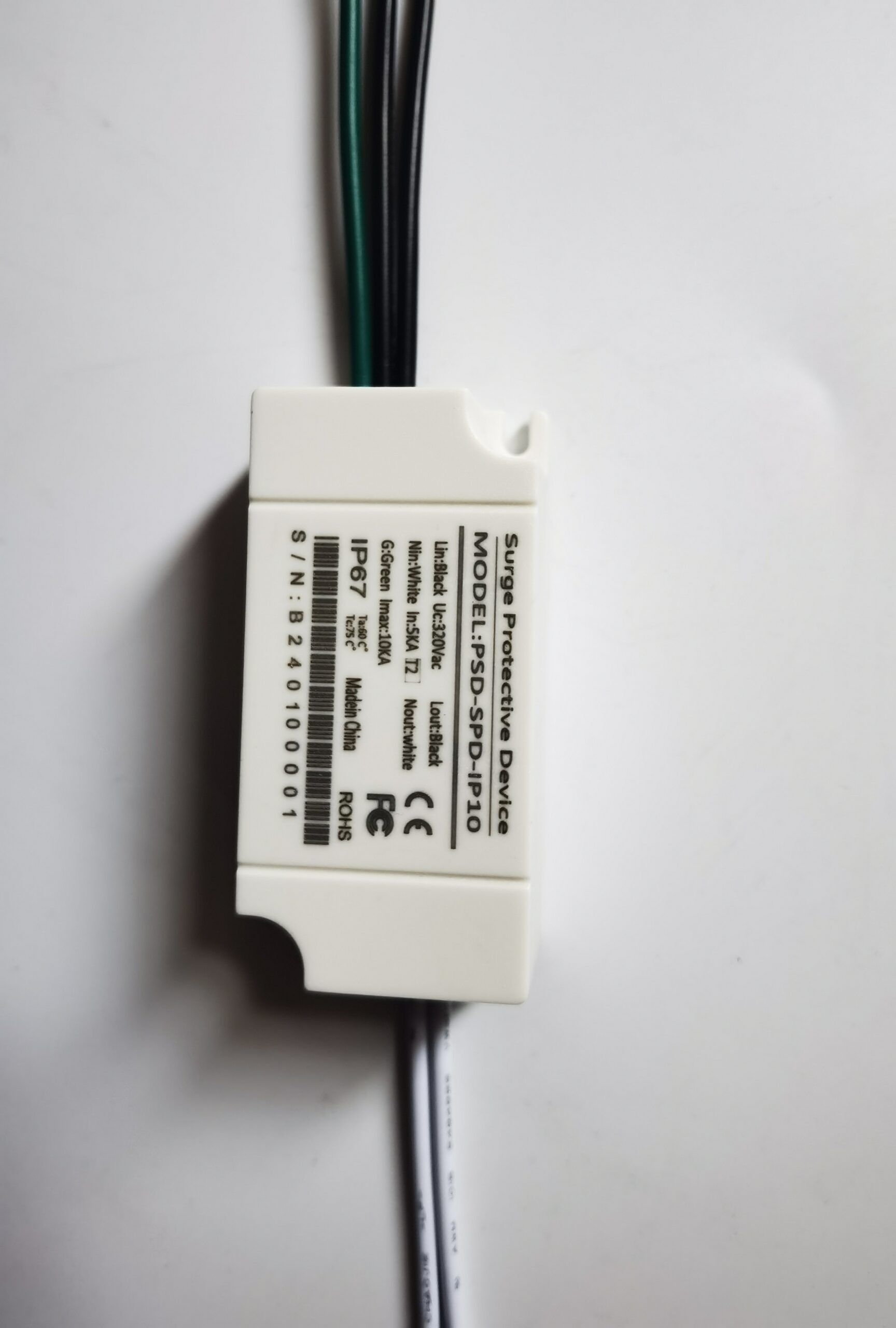

IP67 10kV Surge Protection Device (SPD) for Outdoor LED Lighting
Features
- Input Voltage Range: 90Vac~320Vac
- Max open-circuit voltage: 10kV 1.2/50us
- Max discharge current: 10kA 8/20us
- Test Classification: Class Ⅲ
- Water-proof and Dust-proof: IP67
- High temperature resistance: Ta is up to 70℃
- Safety standard: GB18802.1, EN61643-11
- Protected-type: differential-mode & common mode
- Connection mode: one-port & two-port
- High ground Insulation Resistance
- Indicator for optional
- RoHS compliance
- Outdoor and commercial LED lighting
- Roadway lighting
- Digital signage
- Service entrance lighting
- Parking garage/lot lighting
- Flood lighting
- Tunnel lighting
- LED Street Lighting
- Area Lighting
- Stadium Lighting
- LED Traffic Signals
- Billboards
- Protection for Constant Voltage LED Drivers
Description
Protect your outdoor lighting assets with our robust 10kV/20kV Surge Protection Device. Engineered specifically for LED luminaires, this SPD features a visual LED failure indicator and a fully sealed IP67 waterproof design. It provides maximum protection for street lights, parking lot lights, and LED drivers against lightning and power surges.
| Model | Max.Surge Resistance Voltage (Line-Earth) | Max.Surge Resistance Voltage (Line-Line) | Discharge Current In (Max) | Connection | Life time (times) | Wire spec | Dimension |
| PSD-SPD-IP10 | 10kV | 10kV | 10kA 8/20us | Parallel | 100 | 18AWG | 65.8*21*21mm |
| PSD-SPD-IS10 | 10kV | 10kV | 10kA 8/20us | Series | 100 | 18AWG | 65.8*21*21mm |
| PSD-SPD-IP20 | 20kV | 20kV | 25kA 8/20us | Parallel | 100 | 18AWG | 65.8*21*21mm |
| PSD-SPD-IS20 | 20kV | 20kV | 25kA 8/20us | Series | 100 | 18AWG | 65.8*21*21mm |
