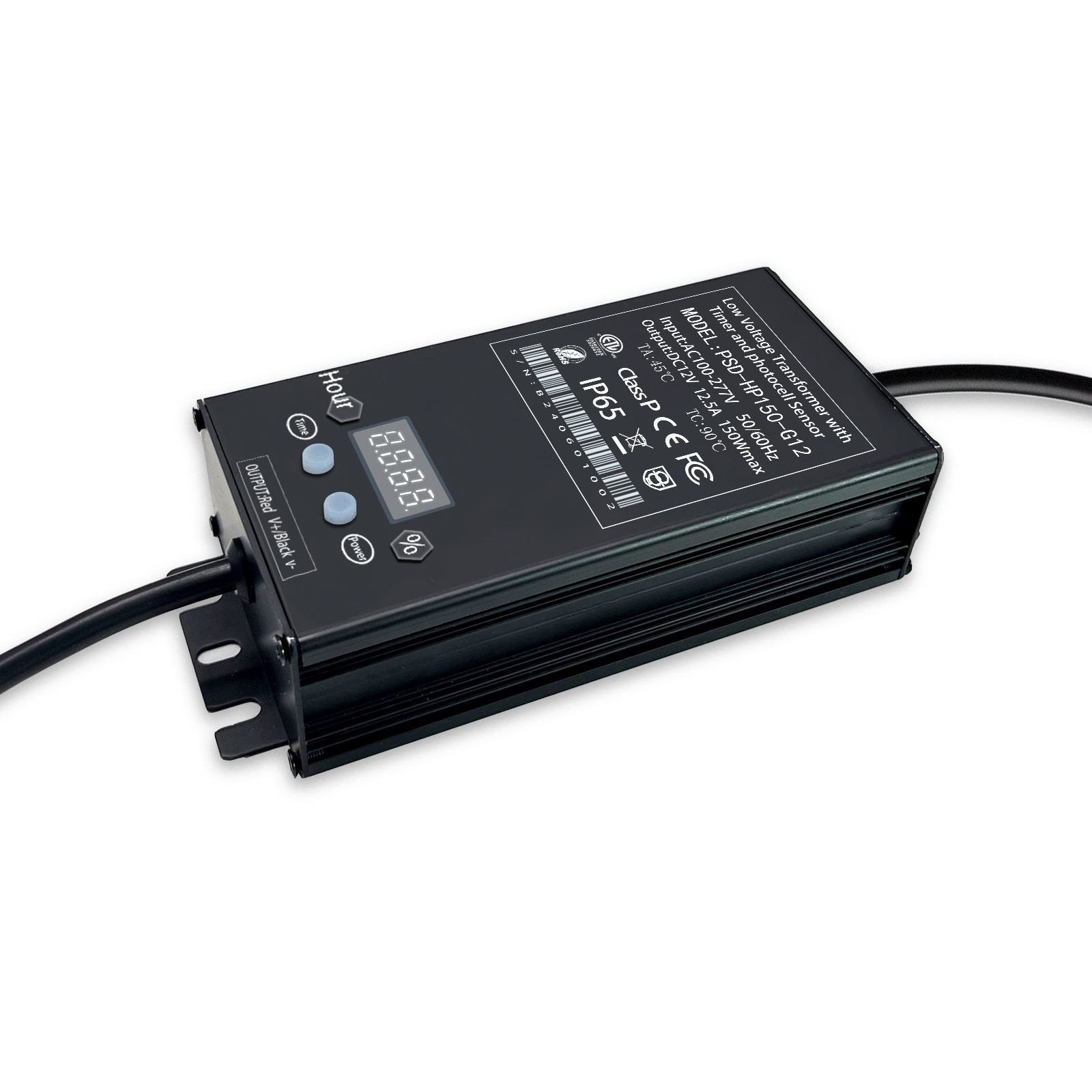

150W-12V-Time-control-CV-LED-Driver

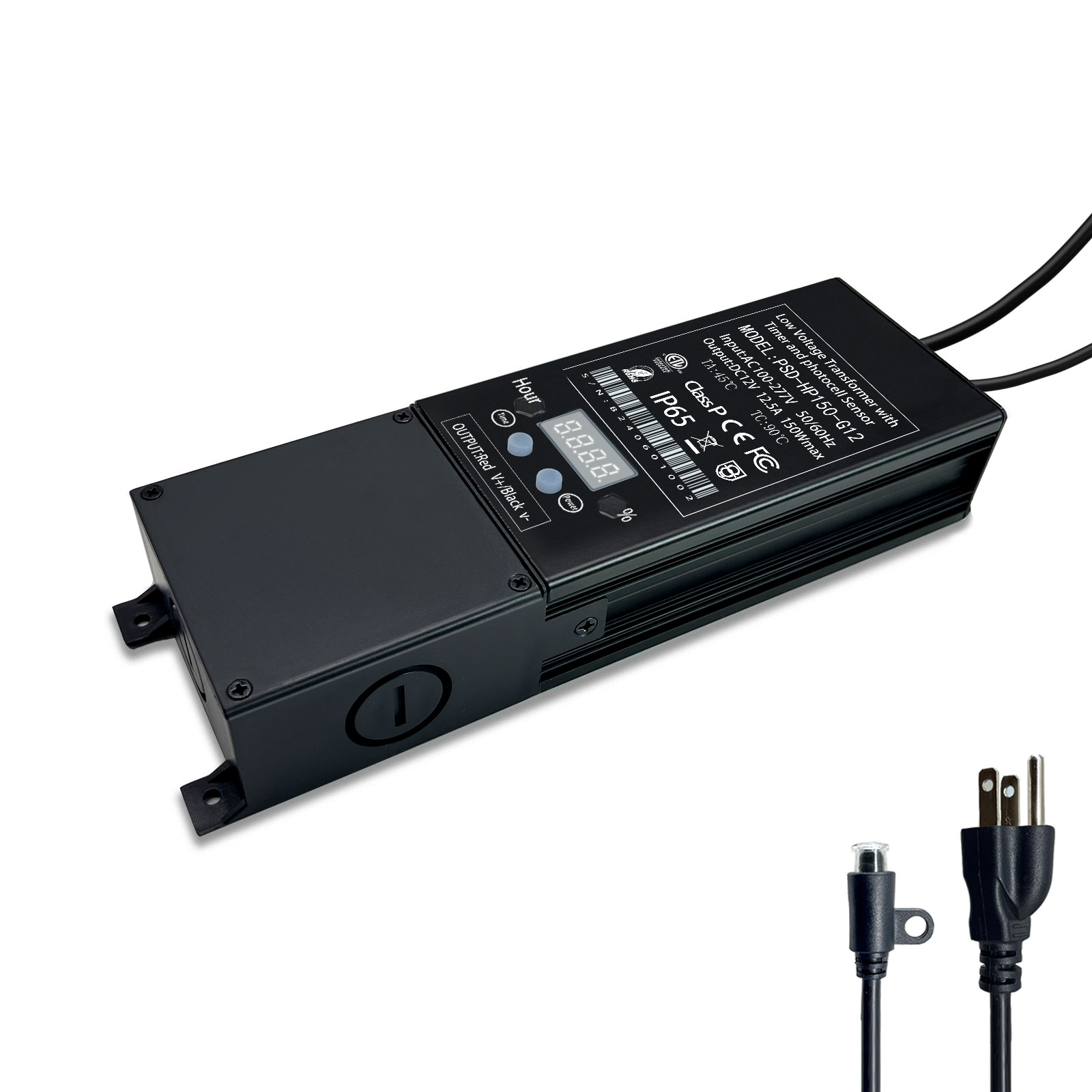

Time control waterproof IP65 constant voltage LED Driver 150W - 图片 4
Time control waterproof IP65 constant voltage LED Driver 150W - 图片 5
Time control waterproof IP65 constant voltage LED Driver 150W - 图片 6

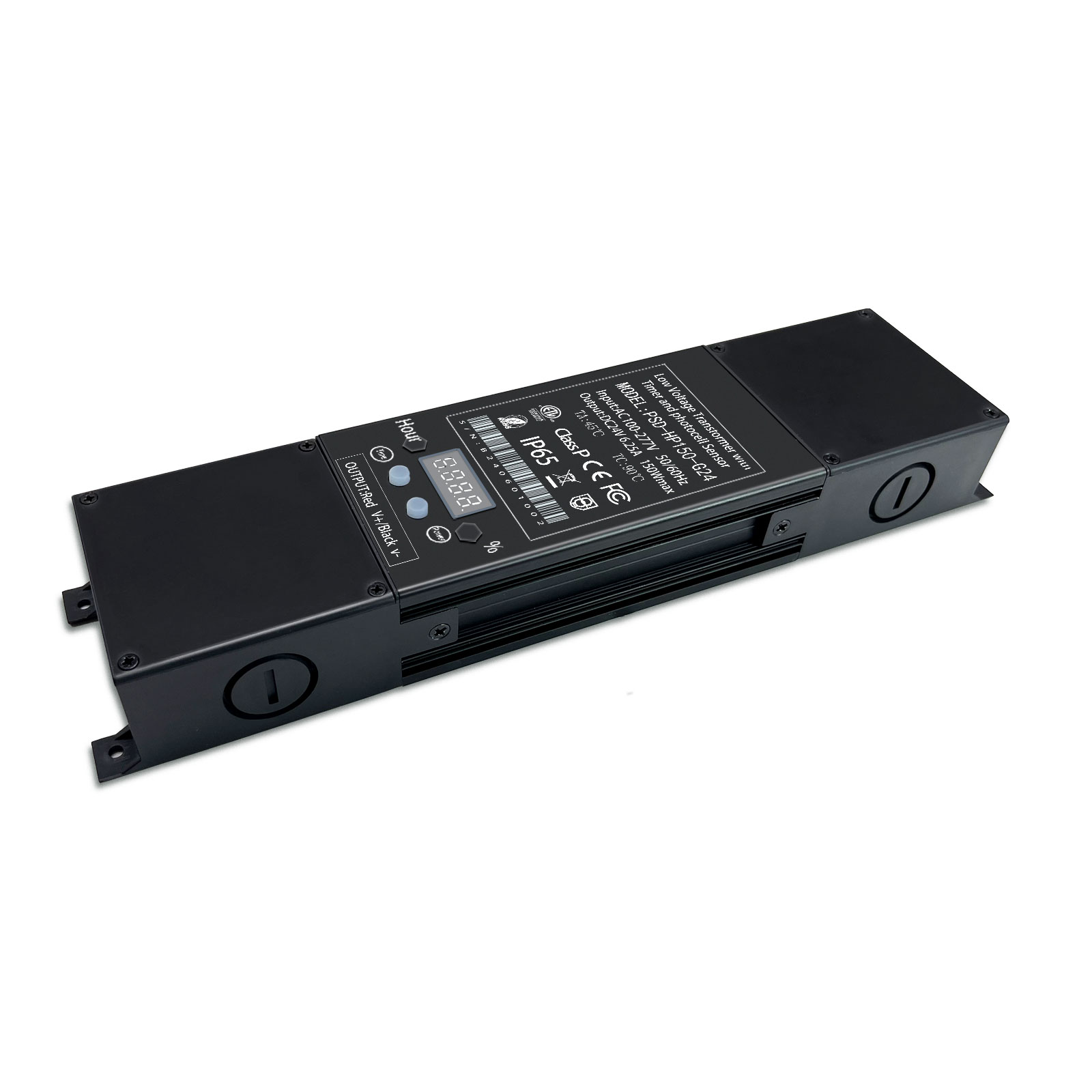

Time control waterproof IP65 constant voltage LED Driver 150W - 图片 7

Time control waterproof IP65 constant voltage LED Driver 150W

Product Features

  • Power range: 60W-350W
  • Time control + light control, 50% energy saving
  • IP67 waterproof rating, suitable for indoor and outdoor installation
  • Output voltage 12V 24V
  • 3-in-1 dimming function (compatible with 0-10V, resistor, PWM dimming)
  • Three installation options: optional single junction box, double junction box, or no junction box
  • Universal AC input voltage range (100-277V)
  • Photocell sensor function, auto turn-off at daytime, auto turn-on at nighttime
  • Multiple protection circuits: Short circuit, over current, over voltage, over temperature protection
  • 0-9 hours timing function

Product application

  •  Advertising light boxes
  • Advertising signs
  • LED strips module
  • LED Strip Lighting (Cove, Under-Cabinet, Accent)
  • Outdoor Landscape & Pathway Lighting
  • LED Signage & Channel Letters
  • Architectural Lighting
  • Garden lighting
  • Pool & Deck Lighting (when housed appropriately)
  • Any 12V /24V DC Constant Voltage LED system



Safety certification

ETL   FCC   CE    RoHS

分类：

描述

Time control constant voltage power supply 150W with light sense optional



Features

■  Universal AC input/full range(100-277V)

■  Time control and  Photosensitive control, saving 50% energy

■  Efficiency up to 90%,

■  Protections:short circuit/over load/over voltage/over temperature

■  IP65 design for indoor or outdoor installation

■  It can be used in dry,wet and rainy environment

■  The lights turn off during the day and turn on at night standby power:0.2-0.4W

■  Countdown function, custom time setting

■  Three in one dimming function, (compatible with 0-10V, resistor, PWM)

■  Up to 50000-hours life time

■  Compliance to worldwide safety regulation for led lightings.



Model PSD-HP150-G12 PSD-HP150-G24
Output







 Output voltage 12VDC 24VDC
Output voltage range 12VDC±0.3VDC 24VDC±0. 6VDC
Output сurrent Max 12.5A Max 6.25A
Output power Max150W
Output power range 0~ 150W
Ripple & Noise ≤250mV ≤250mV
Linear Regulation ±3%
Load Regulation ±3%
Start- up Time (Typ) 600ms/230VAC    700ms/175VAC
Rise Time(Typ) 50ms/230VAC    50ms/175VAC
Hold Up Time(Typ) 14ms/230VAC    13ms/175VAC
Input







 Input voltage 100 – 277Vac
Frequency 50Hz/60Hz
Input сurrent 1.5A
Power factor PF>0 .5
No-load power consumption ＜0.5W
Efficiency (typ. ) 86% 87%
In rush current(typ.) 65A/ 230VAC
Control surge capability L, N:2KV    L, N- PE:4KV
Leakage сurrent Max. 0. 5mA








 Working temperature ta: -30°C ~ 50°C   t c: 80°C
Working humidity 20 ~ 99%RH, condensing(Waterproof)








 Storage temp., humidity -40°C ~ 80°C, 10~ 95%RH
Vibration 10~ 500Hz, 2G 12min ./1cycle, period for 72min . each along X, Y, Z axes .
Protection







 Over temperature Protection type: Turnoff the output voltage, after the temperature drops, re-energize to restore.
Over voltage protection Output voltage ≥14- 18V, turn off the output,

after the abnormality is eliminated, re-energize to recover.

 Output voltage ≥29-35V, turnoff the output,

after the abnormality is eliminated, re-energize to recover
Over load protection Shutdown the output when current load ≥110%~ 150%, auto recovers .
Short circuit protection Protection type: It can be automatically restored after the fault is eliminated.
Safety Withstand voltage I/P-O/P: 3750Vac
Isolation resistance I/P-O/P: 100MΩ/500VDC/25。C/70%RH
Safety standards IEC/EN61347;IEC/EN60950;IP67
EMC emission EN55015:2013;FCC Part 15B;EN61547:2009;EN61000 -3 – 2:2014;EN61000 -3 -3:2013
EMC immunity EN61000 -4 – 2,3,4, 5, 6,8, 11  EN61547
Reliability and  Quality Control Impact aging 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
Component derating Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
NOTE 1. All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature .

2. Ripple and noise test method : connect 0 . 1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3. Ensure that the power supply is used under the rated parameters and environment



time control constant voltage LED Driver

Power Product Model Input Voltage (AC) Output Voltage (DC) Output Current Efficiency PF Size (mm) IP Rating Warranty Certificate
60W PSD-HP060-G12 100-277V 12V 5A 87% 0.5 148*65*36 IP65 5 Years ETL FCC CE
PSD-HP060-G24 100-277V 24V 2.5A 88% 0.5 148*65*36 IP65 5 Years ETL FCC CE
100W PSD-HP100-G12 100-277V 12V 8.3A 89% 0.5 148*65*36 IP65 5 Years ETL FCC CE
PSD-HP100-G24 100-277V 24V 4.15A 91% 0.5 148*65*36 IP65 5 Years ETL FCC CE
150W PSD-HP150-G12 100-277V 12V 12.5A 89% 0.95 148*65*36 IP65 5 Years ETL FCC CE
PSD-HP150-G24 100-277V 24V 6.25A 90% 0.95 148*65*36 IP65 5 Years ETL FCC CE
200W PSD-HP200-G12 100-277V 12V 16.6A 92% 0.95 238*65*36 IP65 5 Years ETL FCC CE
PSD-HP200-G24 100-277V 24V 8.3A 92% 0.95 238*65*36 IP65 5 Years ETL FCC CE
300W PSD-HP300-G12 100-277V 12V 25A 92% 0.95 238*65*36 IP65 5 Years ETL FCC CE
PSD-HP300-G24 100-277V 24V 12.5A 92% 0.95 238*65*36 IP65 5 Years ETL FCC CE
200W PSD-HP200-G12 180-240V 12V 16.6A 92% 0.5 218*65*36 IP65 5 Years CE
PSD-HP200-G24 180-240V 24V 8.3A 92% 0.5 218*65*36 IP65 5 Years CE
300W PSD-HP300-G12 180-240V 12V 25A 92% 0.5 218*65*36 IP65 5 Years CE
PSD-HP300-G24 180-240V 24V 12.5A 92% 0.5 218*65*36 IP65 5 Years CE

Note: Adding one junction box increases the power supply length by 62mm; adding two junction boxes increases the power supply length by 126mm.
