In modern commercial signage, slim light box designs are becoming the standard. Retail stores, shopping malls, restaurants, and advertising projects increasingly require thinner frames, cleaner edges, and uniform backlighting.
But as light boxes become slimmer, one practical problem becomes more important:
How do you choose a power supply that fits the frame, runs safely, and does not affect lighting quality?
If the wrong driver is selected, installers may need to modify the frame on-site, the light surface may show shadows or hot spots, and long-term reliability can suffer due to heat buildup inside enclosed spaces.
This guide explains how to choose the right ultra-thin constant voltage power supply for light box signage, including voltage, wattage, thickness, thermal performance, flicker, and installation considerations.
Why Standard LED Drivers Often Fail in Slim Light Box Projects
A slim light box may look simple from the outside, but the internal space is extremely limited. In many projects, the power supply becomes the hidden cause of installation delays and after-sales problems.
Common issues include:
- Standard drivers are too thick for shallow aluminum frames
- Incorrect driver placement creates shadows behind the graphic panel
- Poor thermal design leads to overheating in sealed light boxes
- Low-quality output causes visible flicker in retail or menu board applications
- Driver failure after installation increases labor, maintenance, and client complaints
For signage manufacturers and contractors, this is not only a technical issue—it directly affects installation time, visual quality, and project profitability.

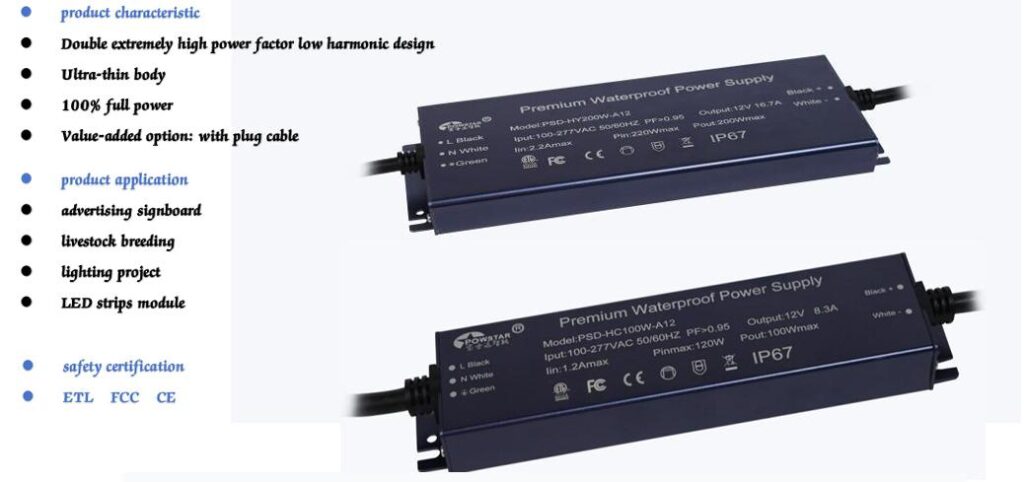

What Is an Ultra-Thin Constant Voltage Power Supply?
An ultra-thin constant voltage power supply is a low-profile LED driver designed for applications where installation space is limited.
Unlike standard enclosed drivers, ultra-thin models are designed to fit inside slim light box frames, shallow signage cabinets, menu boards, and backlit display panels.
For most signage systems, constant voltage (CV) output is the correct choice because LED strips and LED modules are typically designed to operate at a fixed voltage, usually 12V or 24V.
If you are not sure whether your project requires constant voltage or constant current, you can read our guide on
CC vs CV power supply for LED projects.
For general LED driver terminology and best practices, you can also refer to the
U.S. Department of Energy LED resources and Electronics Tutorials.
1. Confirm Whether Your Light Box Uses 12V or 24V
Before choosing any power supply, confirm the voltage requirement of the LED load.
Most light box signage uses:
- 12V constant voltage for shorter runs or common LED modules
- 24V constant voltage for longer strip runs, lower current, and better voltage stability
When 24V is often the better choice:
- Long LED strip lengths
- Larger light box sizes
- Lower voltage drop requirements
- Better efficiency in larger signage systems
When 12V may still be suitable:
- Small light boxes
- Short cable distances
- Existing 12V module compatibility
- Replacement of older 12V signage systems
Important:
Never mix a 12V LED load with a 24V power supply, or vice versa. Always match the LED module or strip specification.
2. Calculate the Correct Wattage (Always Leave Headroom)
Choosing the correct wattage is one of the most important steps.
Basic formula:
Total LED load wattage × safety margin = recommended power supply wattage
Recommended safety margin:
- 20%–30% headroom for most indoor light box projects
Example:
If your LED modules consume 80W total:
- 80W × 1.25 = 100W recommended
- Choose a 100W or 120W ultra-thin CV power supply
Why headroom matters:
- Reduces heat stress
- Improves long-term reliability
- Helps maintain stable output
- Lowers failure risk in enclosed frames
If the power supply is always running at 100% load inside a sealed light box, lifespan will usually decrease faster.
3. Check the Driver Thickness Against the Frame Depth
This is the most overlooked step.
Before ordering, confirm:
- Internal frame depth
- Position of LED modules / strips
- Graphic panel clearance
- Cable routing space
- Mounting bracket or screw space
For slim signage, an ultra-thin driver should typically be as low-profile as possible.
In many practical projects, drivers around 18mm thickness are easier to integrate into shallow light box frames.
Recommended approach:
Measure the actual usable internal depth, not just the external frame size.
A frame advertised as “30mm depth” may have much less usable space after accounting for:
- Back panel
- LED strip height
- Acrylic or diffuser clearance
- Mounting hardware
- Cable bends
4. Prioritize Low Flicker for Retail and Premium Branding
In commercial signage, flicker is a hidden quality issue.
A driver may appear acceptable to the naked eye, but flicker can still be visible:
- On smartphone cameras
- In video recordings
- In menu boards
- In premium retail branding environments
Low-quality flicker can make even a well-designed light box look unprofessional.
Choose a driver with:
- Stable constant voltage output
- Good internal filtering
- Proven low-flicker performance
- Reliable component quality
This is especially important for:
- Retail store light boxes
- Shopping mall advertising displays
- Restaurant menu boards
- Cosmetic and fashion branding
- Photography-visible signage
5. Consider Heat Management in Enclosed Light Boxes
Slim light boxes often have limited or no ventilation.
That means the power supply must handle:
- Tight internal spacing
- Trapped heat
- Long daily operating hours
- Higher ambient temperature near LEDs
What to look for:
- High efficiency design
- Optimized thermal structure
- Stable performance under continuous load
- Reliable internal components
- Realistic operating temperature range
Even if the application is indoor, thermal performance is still critical.
A thin driver that “fits” physically but overheats after installation is not the right solution.
6. Choose the Right Mounting and Cable Layout
For signage factories and installers, ease of installation matters just as much as electrical performance.
A good ultra-thin driver should support:
- Simple screw mounting
- Secure placement in narrow frames
- Practical input/output wire direction
- Clean cable routing
- Optional custom wire lengths for production line efficiency
For OEM or repeated production, customized cable length and terminal layout can reduce:
- Assembly time
- Wiring errors
- Rework during installation
- Visual clutter inside the light box
If your project also needs specialized control features, you can explore our
time-control constant voltage power supply solutions.
7. Indoor Use Does Not Mean You Can Ignore Protection
Many people assume indoor signage does not require attention to protection level.
However, some light boxes still face:
- Dust buildup
- Warm enclosed cabinets
- Frequent switching cycles
- Shopping mall or restaurant operating environments
- Long daily run times
Depending on the project, consider:
- Stable insulation quality
- Reliable surge resistance
- Good heat tolerance
- Appropriate enclosure quality
- Safe wiring terminals or sealed design where needed
If the installation is near entrances, semi-outdoor zones, or humid commercial spaces, environmental resistance becomes even more important.
Best Applications for Ultra-Thin CV Power Supplies
Ultra-thin constant voltage power supplies are commonly used in:
- Retail light box signage
- Menu boards
- Backlit advertising displays
- Slim LED fabric light boxes
- Indoor commercial branding systems
- Shallow-frame illuminated panels
- Shopping mall directional signage
If the project uses LED strips or LED modules in a shallow frame, an ultra-thin 12V or 24V CV driver is often the most practical choice.
Quick Checklist Before You Buy
Before selecting an ultra-thin power supply for light box signage, confirm the following:
Electrical
- Is the LED load 12V or 24V?
- What is the total wattage?
- Have you added 20%–30% power headroom?
Mechanical
- What is the usable internal frame depth?
- Will the driver create shadows or block light distribution?
- Is there enough room for cable routing?
Performance
- Is the output stable and low flicker?
- Is the thermal design suitable for enclosed spaces?
- Is the driver reliable for long daily operation?
Installation
- Is mounting simple and secure?
- Are wire lengths and cable directions suitable?
- Do you need OEM customization?
FAQ: Ultra-Thin Power Supplies for Light Box Signage
Can I use a standard LED driver in a slim light box?
Technically, sometimes yes—but in many cases it creates installation problems, overheating risk, or visible shadows. Ultra-thin drivers are usually the safer choice for shallow frames.
Is 12V or 24V better for light box signage?
Both are common. 24V is often better for larger signs and longer LED runs because it reduces current and voltage drop. 12V is still common for smaller boxes or existing module systems.
How much wattage margin should I leave?
For most indoor signage projects, leave 20%–30% headroom above the actual LED load.
Why does flicker matter in signage?
Flicker can affect visual quality, camera recording, customer perception, and brand presentation—especially in retail and menu board applications.
What thickness is considered ultra-thin?
It depends on the project, but for slim light boxes, low-profile drivers around 18mm class are often easier to integrate than standard enclosed drivers.
Final Thoughts
Choosing an ultra-thin constant voltage power supply for light box signage is not only about making the driver fit inside the frame.
It is about selecting a solution that supports:
- Correct 12V / 24V compatibility
- Proper wattage headroom
- Real space-saving installation
- Low flicker visual performance
- Safe operation in enclosed, non-ventilated spaces
- Long-term reliability with fewer after-sales issues
For signage manufacturers, OEM buyers, and project contractors, the right driver helps prevent redesigns, reduce failures, and deliver a cleaner final result.
Need Help Choosing the Right Ultra-Thin Driver?
If you are working on a slim LED light box project, we can help review:
- Light box depth
- Voltage and wattage
- Installation environment
- LED strip or module type
- OEM or custom cable requirements
Contact Yanghuai Technology for an ultra-thin constant voltage power supply recommendation based on your actual project, not just a catalog model.
